Introduction to Smart-Home
Smart home is a residential platform, which integrates the facilities related to home life by using generic cabling technology, network communication technology, security prevention technology, automatic control technology and audio and video technology, constructs an efficient management system of residential facilities and family schedule affairs, improves the safety, convenience, comfort and artistry of home, and realizes an environment-friendly and energy-saving living environment.
Project realization

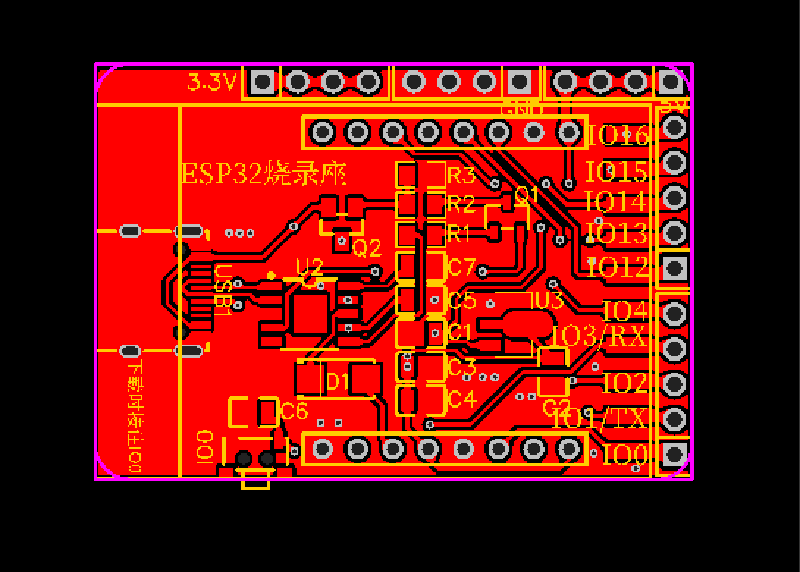

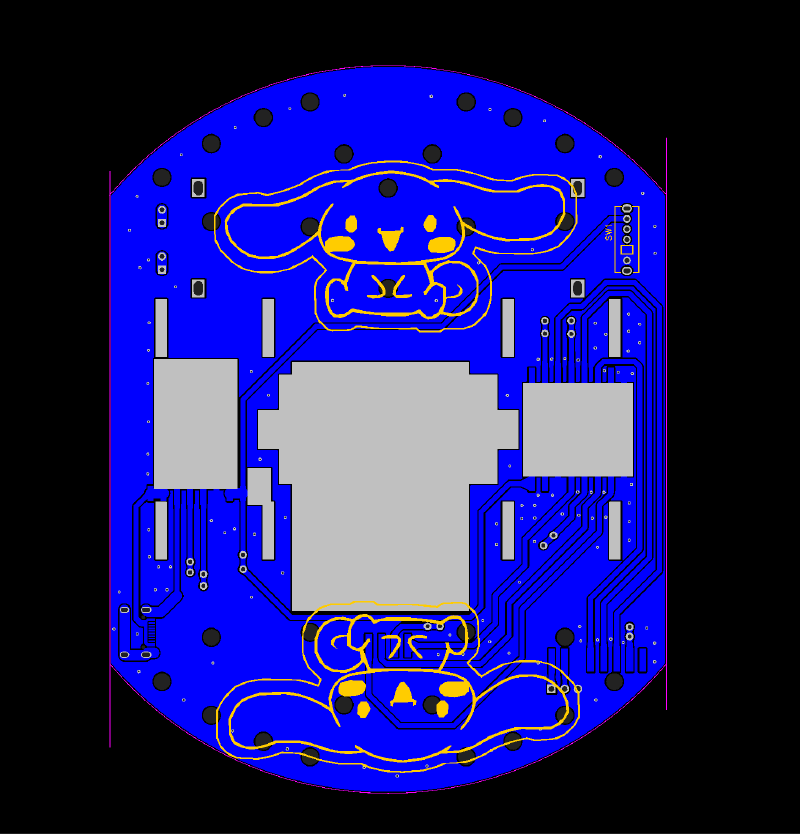

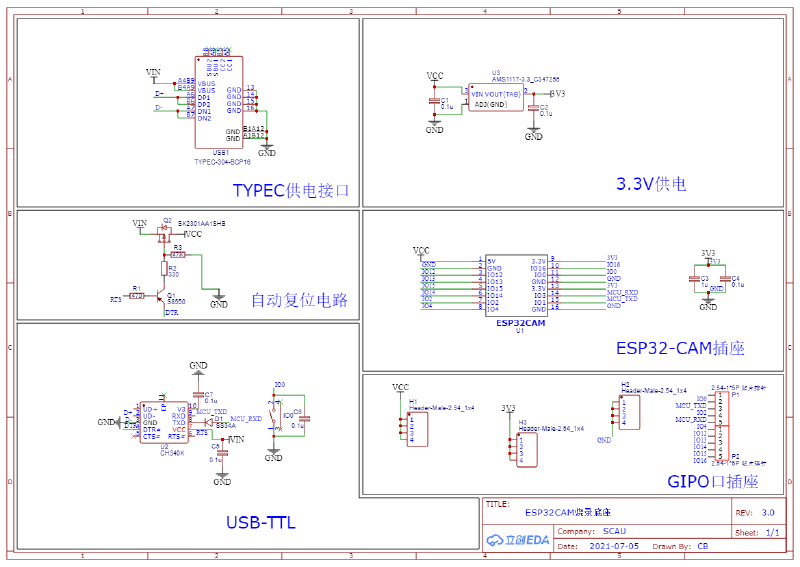

Smart home equipment developed and designed based on esp8266 and esp32-cam, including temperature detection, light bar control, computer LAN wake-up, intelligent camera car and other Internet of things smart home projects, integrating multi platform adaptation such as Xiaoai classmate, Xiaodu, tmall elf and so on.
Concrete Step
WiFi access is used. When the device and mobile phone are in the same LAN, it is LAN communication. In other cases, mqtt remote communication is used.
The arp8266 / esp32 extension needs to be installed in Arduino ide
Arduino ide 1.8.7 or later
Be sure to use esp8266 / esp32 Arduino package with release version 3.0.0 or above
1. WOL wake-up of PC is realized through UDP broadcast, which can realize network wake-up with the motherboard. Power on and power off can be realized with Shutdown UDP broadcast，Take esp8266 as an example：
1#define BLINKER_WIFI
2#define BLINKER_MIOT_OUTLET
3
4#define BLINKER_DUEROS_OUTLET
5
6#define BLINKER_ALIGENIE_OUTLET
7
8//#define BLINKER_WITHOUT_SSL
9
10#include <Servo.h>
11#include <Blinker.h>
12#include <WiFiUDP.h>
13#include <ESP8266Ping.h>
14
15char auth[] = "35a74dc36a92";
16char ssid[] = "Sweet_meng";
17char pswd[] = "aita0116.";
18
19BlinkerButton Button1("k1");
20BlinkerSlider Slider1("ser-num"); //实时位置 滑块 数据键名 范围1-180
21
22Servo myservo;
23int ser_num;
24//唤醒目标电脑的mac地址
25byte mac[] = {0x00, 0xE0, 0x70, 0x49, 0x1D, 0xE7};
26byte preamble[] = {0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF};
27//幻数据包需要在局域网中广播发送,要控制的电脑的网段的255地址
28IPAddress ip(192, 168, 0, 255);
29//建立一个WiFiUDP对象 UDP
30WiFiUDP UDP;
31//UDP接收地址，我这里是使用的广播，注意网段
32const char *UDPAddress = "192.168.0.108";
33//UDP端口
34const int UDPPort = 7101;
35bool oState = false;
36
37void heartbeat()
38{
39 BLINKER_LOG("heartbeat,state: ", oState);
40 if (HIGH == oState)
41 {
42 Button1.print("on");
43 }
44 else
45 {
46 Button1.print("off");
47 }
48}
49
50void button1_callback(const String &state)
51{
52 BLINKER_LOG("get button state: ", state);
53 if (state == BLINKER_CMD_ON)
54 {
55 BLINKER_LOG("Toggle on!");
56 UDP.beginPacket(ip, 9); //UDP发送到目标（IP，端口）
57 UDP.write(preamble, sizeof preamble); //写入包头(FF,FF,FF,FF,FF,FF)
58 for (byte i = 0; i < 16; i++)
59 {
60 UDP.write(mac, sizeof mac);
61 }
62 BLINKER_LOG("唤醒主机");
63 UDP.endPacket();
64 Button1.print("on");
65 oState = true;
66 }
67 else if (state == BLINKER_CMD_OFF)
68 {
69 BLINKER_LOG("Toggle off!");
70 char sd[] = "shut"; //与电脑相对应的指令
71 UDP.beginPacket(UDPAddress, UDPPort); //准备发送，设置地址和端口
72 UDP.write((char *)sd, 8);
73 BLINKER_LOG("关闭主机");
74 UDP.endPacket();
75 Button1.print("off");
76 oState = false;
77 }
78 BlinkerMIOT.powerState(oState ? "on" : "off");
79 BlinkerMIOT.print();
80
81 BlinkerDuerOS.powerState(oState ? "on" : "off");
82 BlinkerDuerOS.print();
83
84 BlinkerAliGenie.powerState(oState ? "on" : "off");
85 BlinkerAliGenie.print();
86}
87
88void slider1_callback(int32_t value)
89{
90 ser_num = value;
91 myservo.write(ser_num);
92 Blinker.delay(500);
93 BLINKER_LOG("get slider value: ", value);
94}
95
96void miotPowerState(const String &state)
97{
98 BLINKER_LOG("need set power state: ", state);
99 if (state == BLINKER_CMD_ON)
100 {
101 UDP.beginPacket(ip, 9); //UDP发送到目标（IP，端口）
102 UDP.write(preamble, sizeof preamble); //写入包头(FF,FF,FF,FF,FF,FF)
103 for (byte i = 0; i < 16; i++)
104 {
105 UDP.write(mac, sizeof mac);
106 }
107 BLINKER_LOG("唤醒主机");
108 UDP.endPacket();
109 oState = true;
110 }
111 else if (state == BLINKER_CMD_OFF)
112 {
113 char sd[] = "shut"; //与电脑相对应的指令
114 UDP.beginPacket(UDPAddress, UDPPort); //准备发送，设置地址和端口
115 UDP.write((char *)sd, 8);
116 BLINKER_LOG("关闭主机");
117 UDP.endPacket();
118 oState = false;
119 }
120 BlinkerMIOT.powerState(oState ? "on" : "off");
121 BlinkerMIOT.print();
122}
123
124void miotQuery(int32_t queryCode)
125{
126 BLINKER_LOG("MIOT Query codes: ", queryCode);
127 switch (queryCode)
128 {
129 case BLINKER_CMD_QUERY_ALL_NUMBER:
130 BLINKER_LOG("MIOT Query All");
131 BlinkerMIOT.powerState(oState ? "on" : "off");
132 BlinkerMIOT.print();
133 break;
134 case BLINKER_CMD_QUERY_POWERSTATE_NUMBER:
135 BLINKER_LOG("MIOT Query Power State");
136 BlinkerMIOT.powerState(oState ? "on" : "off");
137 BlinkerMIOT.print();
138 break;
139 default:
140 BlinkerMIOT.powerState(oState ? "on" : "off");
141 BlinkerMIOT.print();
142 break;
143 }
144}
145
146void duerPowerState(const String &state)
147{
148 BLINKER_LOG("need set power state: ", state);
149 if (state == BLINKER_CMD_ON)
150 {
151 UDP.beginPacket(ip, 9); //UDP发送到目标（IP，端口）
152 UDP.write(preamble, sizeof preamble); //写入包头(FF,FF,FF,FF,FF,FF)
153 for (byte i = 0; i < 16; i++)
154 {
155 UDP.write(mac, sizeof mac);
156 }
157 BLINKER_LOG("唤醒主机");
158 UDP.endPacket();
159 oState = true;
160 }
161 else if (state == BLINKER_CMD_OFF)
162 {
163 char sd[] = "shut"; //与电脑相对应的指令
164 UDP.beginPacket(UDPAddress, UDPPort); //准备发送，设置地址和端口
165 UDP.write((char *)sd, 8);
166 BLINKER_LOG("关闭主机");
167 UDP.endPacket();
168 oState = false;
169 }
170 BlinkerDuerOS.powerState(oState ? "on" : "off");
171 BlinkerDuerOS.print();
172}
173
174void duerQuery(int32_t queryCode)
175{
176 BLINKER_LOG("DuerOS Query codes: ", queryCode);
177 switch (queryCode)
178 {
179 case BLINKER_CMD_QUERY_ALL_NUMBER:
180 BLINKER_LOG("DuerOS Query All");
181 BlinkerDuerOS.powerState(oState ? "on" : "off");
182 BlinkerDuerOS.time(millis());
183 BlinkerDuerOS.print();
184 break;
185 case BLINKER_CMD_QUERY_POWERSTATE_NUMBER:
186 BLINKER_LOG("DuerOS Query Power State");
187 BlinkerDuerOS.powerState(oState ? "on" : "off");
188 BlinkerDuerOS.print();
189 break;
190 case BLINKER_CMD_QUERY_TIME_NUMBER:
191 BLINKER_LOG("DuerOS Query time");
192 BlinkerDuerOS.time(millis());
193 BlinkerDuerOS.print();
194 break;
195 default:
196 BlinkerDuerOS.powerState(oState ? "on" : "off");
197 BlinkerDuerOS.time(millis());
198 BlinkerDuerOS.print();
199 break;
200 }
201}
202
203void aligeniePowerState(const String &state)
204{
205 BLINKER_LOG("need set power state: ", state);
206 if (state == BLINKER_CMD_ON)
207 {
208 UDP.beginPacket(ip, 9); //UDP发送到目标（IP，端口）
209 UDP.write(preamble, sizeof preamble); //写入包头(FF,FF,FF,FF,FF,FF)
210 for (byte i = 0; i < 16; i++)
211 {
212 UDP.write(mac, sizeof mac);
213 }
214 BLINKER_LOG("唤醒主机");
215 UDP.endPacket();
216 oState = true;
217 }
218 else if (state == BLINKER_CMD_OFF)
219 {
220 char sd[] = "shut"; //与电脑相对应的指令
221 UDP.beginPacket(UDPAddress, UDPPort); //准备发送，设置地址和端口
222 UDP.write((char *)sd, 8);
223 BLINKER_LOG("关闭主机");
224 UDP.endPacket();
225 oState = false;
226 }
227 BlinkerAliGenie.powerState(oState ? "on" : "off");
228 BlinkerAliGenie.print();
229}
230
231void aligenieQuery(int32_t queryCode)
232{
233 BLINKER_LOG("AliGenie Query codes: ", queryCode);
234 switch (queryCode)
235 {
236 case BLINKER_CMD_QUERY_ALL_NUMBER:
237 BLINKER_LOG("AliGenie Query All");
238 BlinkerAliGenie.powerState(oState ? "on" : "off");
239 BlinkerAliGenie.print();
240 break;
241 case BLINKER_CMD_QUERY_POWERSTATE_NUMBER:
242 BLINKER_LOG("AliGenie Query Power State");
243 BlinkerAliGenie.powerState(oState ? "on" : "off");
244 BlinkerAliGenie.print();
245 break;
246 default:
247 BlinkerAliGenie.powerState(oState ? "on" : "off");
248 BlinkerAliGenie.print();
249 break;
250 }
251}
252
253void dataRead(const String &data)
254{
255 BLINKER_LOG("Blinker readString: ", data);
256 Blinker.vibrate();
257 uint32_t BlinkerTime = millis();
258 Blinker.print("millis", BlinkerTime);
259}
260
261void setup()
262{
263 Serial.begin(115200);
264 BLINKER_DEBUG.stream(Serial);
265 // BLINKER_DEBUG.debugAll();
266
267 myservo.attach(0); //servo.attach():设置舵机数据引脚
268 myservo.write(90); //servo.write():设置转动角度
269
270 Button1.attach(button1_callback);
271 Slider1.attach(slider1_callback);
272 Blinker.attachHeartbeat(heartbeat);
273
274 Blinker.begin(auth, ssid, pswd);
275 Blinker.attachData(dataRead);
276
277 BlinkerMIOT.attachPowerState(miotPowerState);
278 BlinkerMIOT.attachQuery(miotQuery);
279
280 BlinkerDuerOS.attachPowerState(duerPowerState);
281 BlinkerDuerOS.attachQuery(duerQuery);
282
283 BlinkerAliGenie.attachPowerState(aligeniePowerState);
284 BlinkerAliGenie.attachQuery(aligenieQuery);
285}
286
287void loop()
288{
289 Blinker.run();
290}
2. The light band of ws2812, combined with the fastled library, can achieve a variety of lighting effects，Take esp8266 as an example：
1///////////////////////////////////////////////////////////////////////////K1灯效FastLED(依赖K2灯效FastLED)
2
3typedef void (*SimplePatternList1[])();
4SimplePatternList1 gPatterns1 = {rainbow}; //rainbow, rainbowWithGlitter, confetti, sinelon, juggle, bpm 6种特效切换
5
6///////////////////////////////////////////////////////////////////////////K2灯效FastLED
7// List of patterns to cycle through. Each is defined as a separate function below.
8typedef void (*SimplePatternList[])();
9SimplePatternList gPatterns = {juggle}; //rainbow, rainbowWithGlitter, confetti, sinelon, juggle, bpm 6种特效切换
10
11uint8_t gCurrentPatternNumber = 0; // Index number of which pattern is current
12uint8_t gHue = 0; // rotating "base color" used by many of the patterns
13
14#define ARRAY_SIZE(A) (sizeof(A) / sizeof((A)[0]))
15
16void nextPattern()
17{
18 // add one to the current pattern number, and wrap around at the end
19 gCurrentPatternNumber = (gCurrentPatternNumber + 1) % ARRAY_SIZE(gPatterns);
20}
21
22void rainbow()
23{
24 // FastLED's built-in rainbow generator
25 fill_rainbow(leds, NUM_LEDS, gHue, 3);
26}
27
28void rainbowWithGlitter()
29{
30 // built-in FastLED rainbow, plus some random sparkly glitter
31 rainbow();
32 addGlitter(80);
33}
34
35void addGlitter(fract8 chanceOfGlitter)
36{
37 if (random8() < chanceOfGlitter)
38 {
39 leds[random16(NUM_LEDS)] += CRGB::White;
40 }
41}
42
43void confetti()
44{
45 // random colored speckles that blink in and fade smoothly
46 fadeToBlackBy(leds, NUM_LEDS, 10);
47 int pos = random16(NUM_LEDS);
48 leds[pos] += CHSV(gHue + random8(64), 200, 255);
49}
50
51void sinelon()
52{
53 // a colored dot sweeping back and forth, with fading trails
54 fadeToBlackBy(leds, NUM_LEDS, 20);
55 int pos = beatsin16(13, 0, NUM_LEDS - 1);
56 leds[pos] += CHSV(gHue, 255, 192);
57}
58
59void bpm()
60{
61 // colored stripes pulsing at a defined Beats-Per-Minute (BPM)
62 uint8_t BeatsPerMinute = 62;
63 CRGBPalette16 palette = PartyColors_p;
64 uint8_t beat = beatsin8(BeatsPerMinute, 64, 255);
65 for (int i = 0; i < NUM_LEDS; i++)
66 { //9948
67 leds[i] = ColorFromPalette(palette, gHue + (i * 2), beat - gHue + (i * 10));
68 }
69}
70
71void juggle()
72{
73 // eight colored dots, weaving in and out of sync with each other
74 fadeToBlackBy(leds, NUM_LEDS, 20);
75 byte dothue = 0;
76 for (int i = 0; i < 8; i++)
77 {
78 leds[beatsin16(i + 7, 0, NUM_LEDS - 1)] |= CHSV(dothue, 200, 255);
79 dothue += 32;
80 }
81}
82
83///////////////////////////////////////////////////////////////////////////K3灯效
84//冷却：空气上升时会冷却多少？
85//冷却少=火焰高. 冷却更多=火焰更短.
86//默认值50，建议范围20-100
87#define COOLING 50
88
89//发出火花：有什么机会（总共255个）点燃新的火花？
90//更高的机会=更多的怒吼. 机会降低=火势更加闪烁.
91//默认值为120，建议范围为50-200.
92#define SPARKING 120
93bool gReverseDirection = false;
94void Fire2012()
95{
96 // Array of temperature readings at each simulation cell
97 static byte heat[NUM_LEDS];
98
99 // Step 1. Cool down every cell a little
100 for (int i = 0; i < NUM_LEDS; i++)
101 {
102 heat[i] = qsub8(heat[i], random8(0, ((COOLING * 10) / NUM_LEDS) + 2));
103 }
104
105 // Step 2. Heat from each cell drifts 'up' and diffuses a little
106 for (int k = NUM_LEDS - 1; k >= 2; k--)
107 {
108 heat[k] = (heat[k - 1] + heat[k - 2] + heat[k - 2]) / 3;
109 }
110
111 // Step 3. Randomly ignite new 'sparks' of heat near the bottom
112 if (random8() < SPARKING)
113 {
114 int y = random8(7);
115 heat[y] = qadd8(heat[y], random8(160, 255));
116 }
117
118 // Step 4. Map from heat cells to LED colors
119 for (int j = 0; j < NUM_LEDS; j++)
120 {
121 CRGB color = HeatColor(heat[j]);
122 int pixelnumber;
123 if (gReverseDirection)
124 {
125 pixelnumber = (NUM_LEDS - 1) - j;
126 }
127 else
128 {
129 pixelnumber = j;
130 }
131 leds[pixelnumber] = color;
132 }
133}
134
135///////////////////////////////////////////////////////////////////////////K4灯效
136#if FASTLED_VERSION < 3001000
137#error "Requires FastLED 3.1 or later; check github for latest code."
138#endif
139// This function draws rainbows with an ever-changing,
140// widely-varying set of parameters.
141void pride()
142{
143 static uint16_t sPseudotime = 0;
144 static uint16_t sLastMillis = 0;
145 static uint16_t sHue16 = 0;
146
147 uint8_t sat8 = beatsin88(87, 220, 250);
148 uint8_t brightdepth = beatsin88(341, 96, 224);
149 uint16_t brightnessthetainc16 = beatsin88(203, (25 * 256), (40 * 256));
150 uint8_t msmultiplier = beatsin88(147, 23, 60);
151
152 uint16_t hue16 = sHue16; //gHue * 256;
153 uint16_t hueinc16 = beatsin88(113, 1, 3000);
154
155 uint16_t ms = millis();
156 uint16_t deltams = ms - sLastMillis;
157 sLastMillis = ms;
158 sPseudotime += deltams * msmultiplier;
159 sHue16 += deltams * beatsin88(400, 5, 9);
160 uint16_t brightnesstheta16 = sPseudotime;
161
162 for (uint16_t i = 0; i < NUM_LEDS; i++)
163 {
164 hue16 += hueinc16;
165 uint8_t hue8 = hue16 / 256;
166
167 brightnesstheta16 += brightnessthetainc16;
168 uint16_t b16 = sin16(brightnesstheta16) + 32768;
169
170 uint16_t bri16 = (uint32_t)((uint32_t)b16 * (uint32_t)b16) / 65536;
171 uint8_t bri8 = (uint32_t)(((uint32_t)bri16) * brightdepth) / 65536;
172 bri8 += (255 - brightdepth);
173
174 CRGB newcolor = CHSV(hue8, sat8, bri8);
175
176 uint16_t pixelnumber = i;
177 pixelnumber = (NUM_LEDS - 1) - pixelnumber;
178
179 nblend(leds[pixelnumber], newcolor, 64);
180 }
181}
182void mode_2()
183{
184 if (BRIGHTNESS < 20)
185 {
186 BRIGHTNESS = 20;
187 Slider1.print(BRIGHTNESS);
188 }
189 FastLED.setBrightness(BRIGHTNESS); //实时更新亮度
190 gPatterns1[gCurrentPatternNumber]();
191 FastLED.show();
192 FastLED.delay(200 / UPDATES_PER_SECOND);
193 EVERY_N_MILLISECONDS(20) { gHue++; } // slowly cycle the "base color" through the rainbow
194 EVERY_N_SECONDS(10) { nextPattern(); } // change patterns periodically
195}
196
197void mode_3()
198{
199 if (BRIGHTNESS < 20)
200 {
201 BRIGHTNESS = 20;
202 Slider1.print(BRIGHTNESS);
203 }
204 FastLED.setBrightness(BRIGHTNESS); //实时更新亮度
205 gPatterns[gCurrentPatternNumber]();
206 FastLED.show();
207 FastLED.delay(1000 / (UPDATES_PER_SECOND / 10));
208
209 // do some periodic updates
210 EVERY_N_MILLISECONDS(20) { gHue++; } // slowly cycle the "base color" through the rainbow
211 EVERY_N_SECONDS(10) { nextPattern(); } // change patterns periodically
212}
213
214void mode_4()
215{
216 if (BRIGHTNESS < 20)
217 {
218 BRIGHTNESS = 20;
219 Slider1.print(BRIGHTNESS);
220 }
221 Fire2012();
222 FastLED.setBrightness(BRIGHTNESS); //实时更新亮度
223 FastLED.delay(1000 / UPDATES_PER_SECOND);
224}
225
226void mode_5()
227{
228 if (BRIGHTNESS < 20)
229 {
230 BRIGHTNESS = 20;
231 Slider1.print(BRIGHTNESS);
232 }
233 FastLED.setBrightness(BRIGHTNESS); //实时更新亮度
234 pride();
235 FastLED.show();
236 FastLED.delay(1000 / (UPDATES_PER_SECOND / 5));
237}
238
3. Esp32-cam is equipped with a camera, which can build a video monitoring vehicle. The schematic diagram and PCB of esp32-cam base and the PCB of trolley base are as follows：
Take esp32 as an example：
1int calculatePWM(int degree) //舵机角度
2{
3 //20ms周期，高电平0.5-2.5ms，对应0-180度角度
4 const float deadZone = 6.4; //对应0.5ms（0.5ms/(20ms/256）)
5 const float max = 32; //对应2.5ms
6 if (degree < 0)
7 degree = 0;
8 if (degree > 180)
9 degree = 180;
10 return (int)(((max - deadZone) / 180) * degree + deadZone);
11}
12
13void servo_360() //360度舵机控制
14{
15 if (y < 128)
16 {
17 ledcWrite(servo_channel, calculatePWM(88)); // 输出PWM
18 }
19 else if (y == 128)
20 {
21 ledcWrite(servo_channel, calculatePWM(92)); // 输出PWM
22 }
23 else if (y > 128)
24 {
25 ledcWrite(servo_channel, calculatePWM(96)); // 输出PWM
26 }
27}
28
29void xunhuan()
30{
31 ledcWrite(servo_channel, calculatePWM(angle)); // 输出PWM
32 ledcWrite(flashled_channel, flashled_pwm); // 输出PWM
33 if ((y <= 37.5) && (x >= 37.5) && (x <= 217.5))//前进
34 {
35 ledcWrite(motorA1_channel, motor_pwm);
36 ledcWrite(motorA2_channel, 0);
37 ledcWrite(motorB1_channel, motor_pwm);
38 ledcWrite(motorB2_channel, 0);
39 }
40 if ((x <= 37.5) && (y >= 37.5) && (y <= 217.5))//左转
41 {
42 ledcWrite(motorA1_channel, 0);
43 ledcWrite(motorA2_channel, motor_pwm);
44 ledcWrite(motorB1_channel, motor_pwm);
45 ledcWrite(motorB2_channel, 0);
46 }
47 if ((x >= 217.5) && (y >= 37.5) && (y <= 217.5))//右转
48 {
49 ledcWrite(motorA1_channel, motor_pwm);
50 ledcWrite(motorA2_channel, 0);
51 ledcWrite(motorB1_channel, 0);
52 ledcWrite(motorB2_channel, motor_pwm);
53 }
54 if ((y >= 217.5) && (x >= 37.5) && (x <= 217.5))//后退
55 {
56 ledcWrite(motorA1_channel, 0);
57 ledcWrite(motorA2_channel, motor_pwm);
58 ledcWrite(motorB1_channel, 0);
59 ledcWrite(motorB2_channel, motor_pwm);
60 }
61 if ((x > 37.5) && (x < 217.5) && (y > 37.5) && (y < 217.5))//后退
62 {
63 ledcWrite(motorA1_channel, 0);
64 ledcWrite(motorA2_channel, 0);
65 ledcWrite(motorB1_channel, 0);
66 ledcWrite(motorB2_channel, 0);
67 }
68}
The complete source code of relevant projects in this article has been uploaded to gitee，Click to view More smart home project source code, such as smart fan, smart air conditioner, smart socket and so on.
